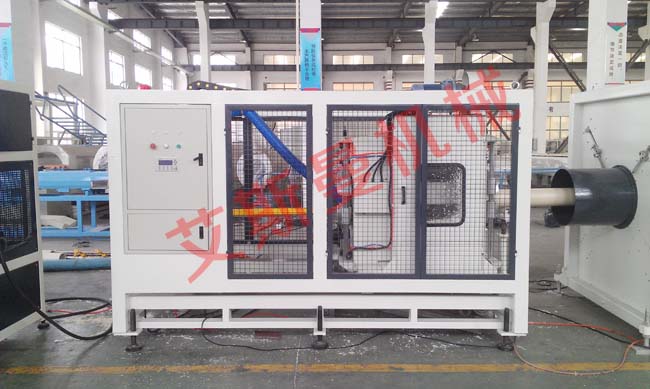

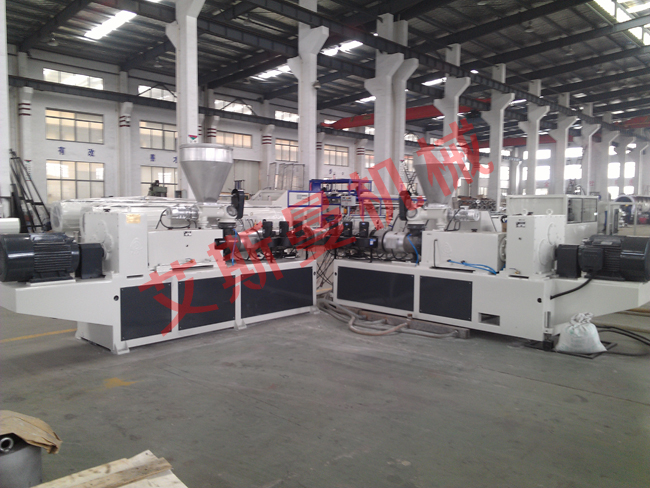

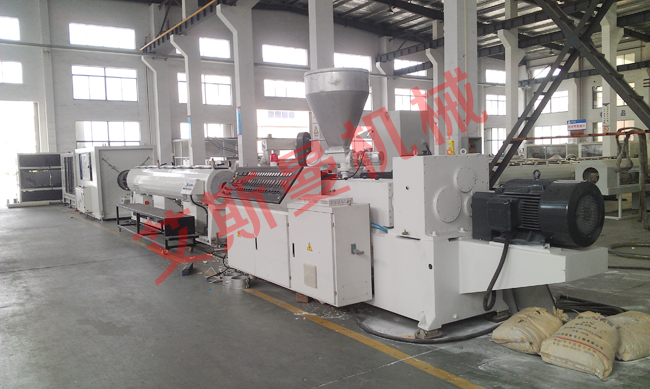

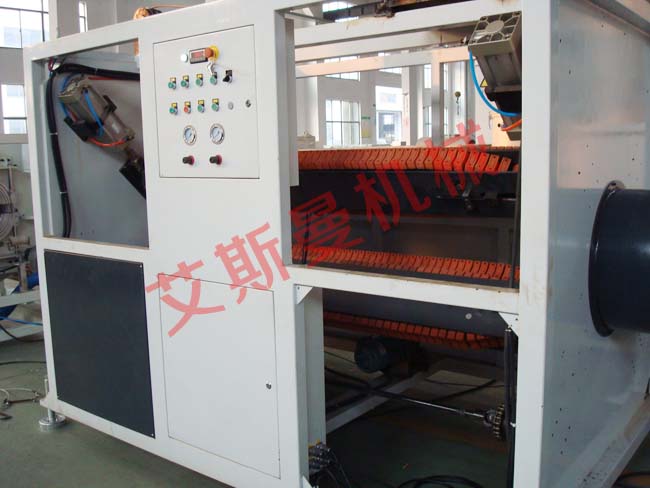

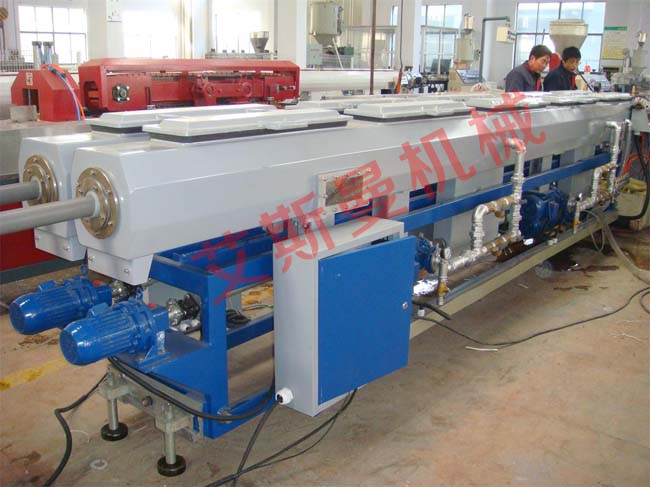

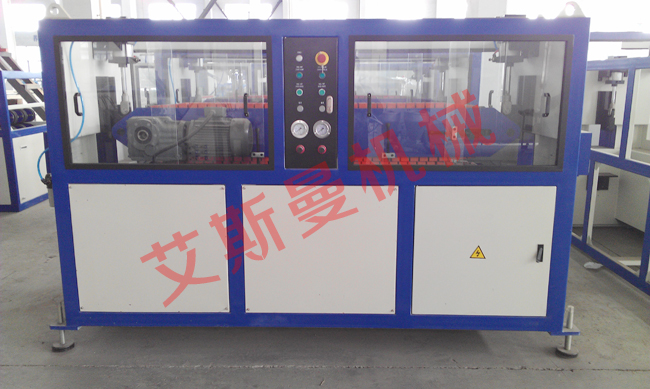

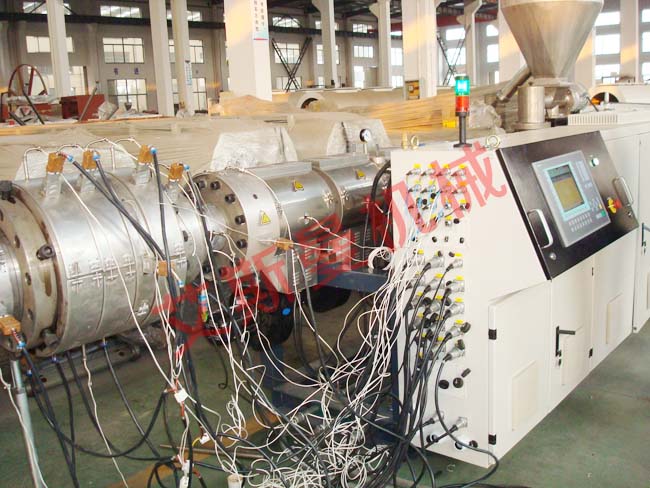

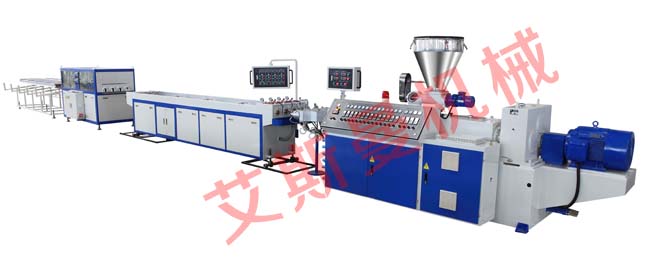

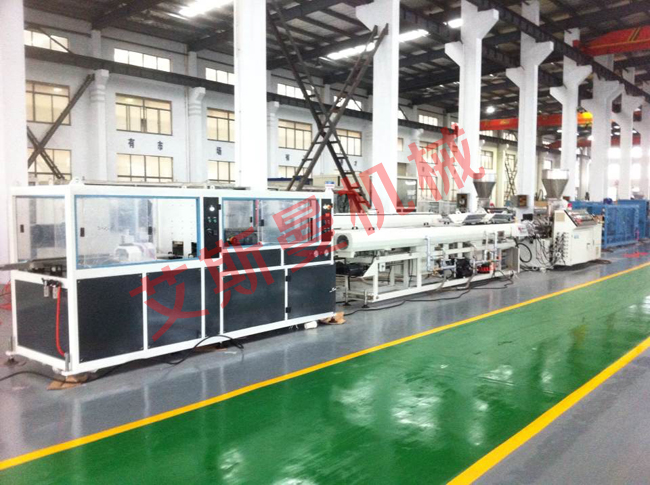

    PVC solid pipe production line

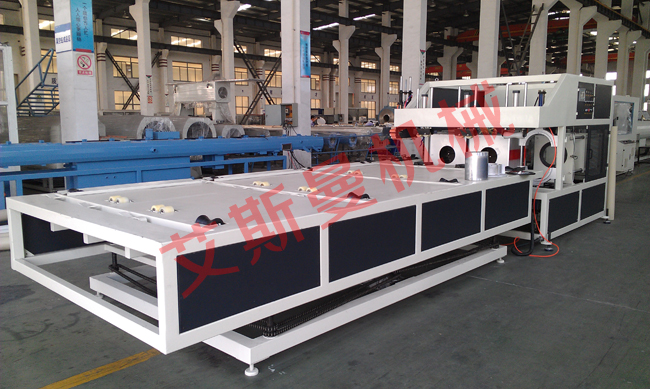

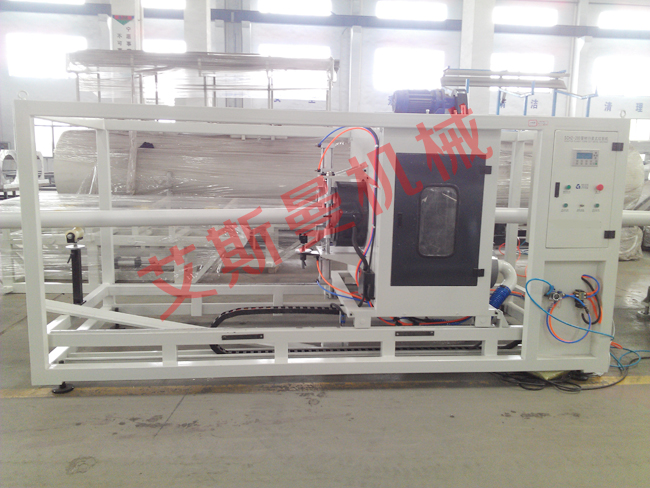

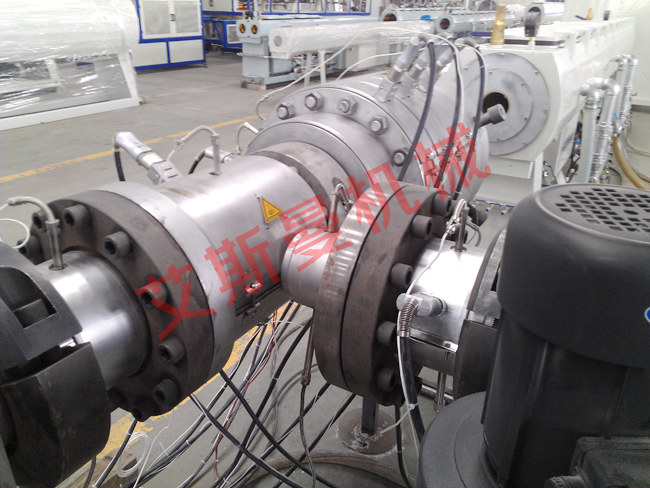

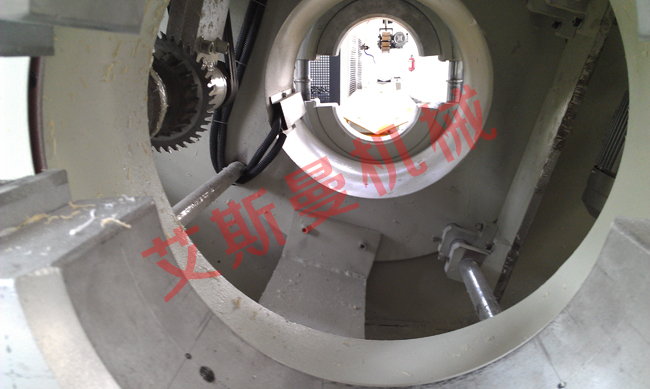

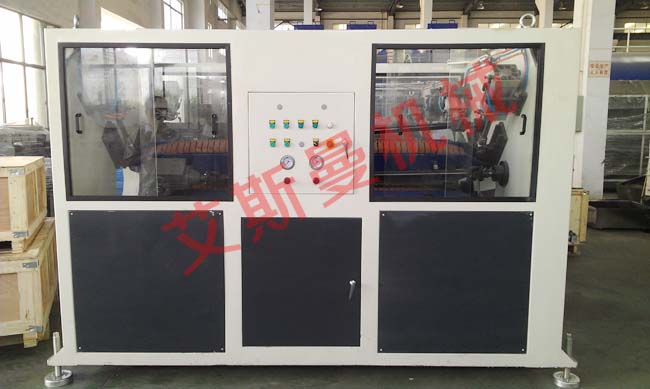

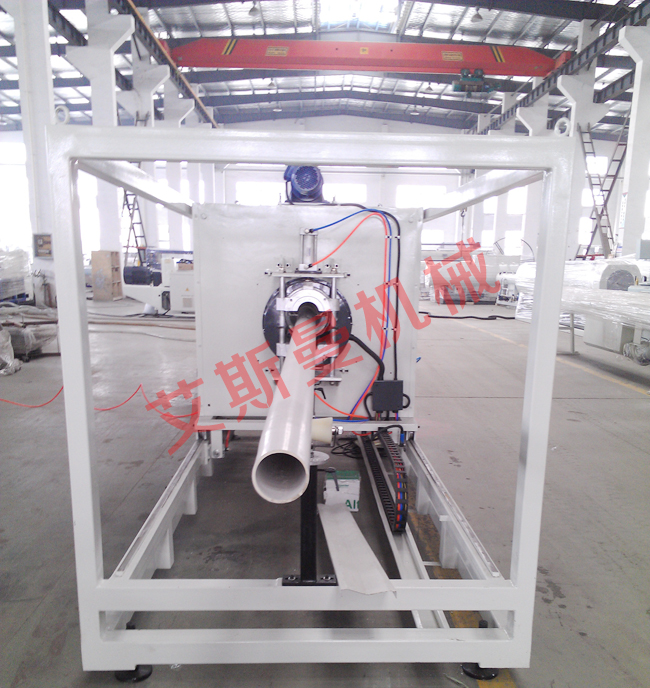

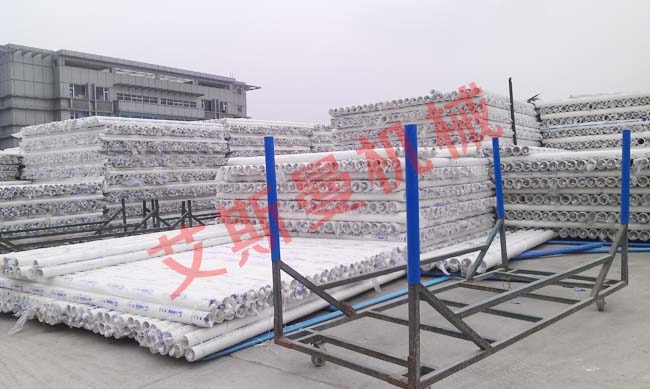

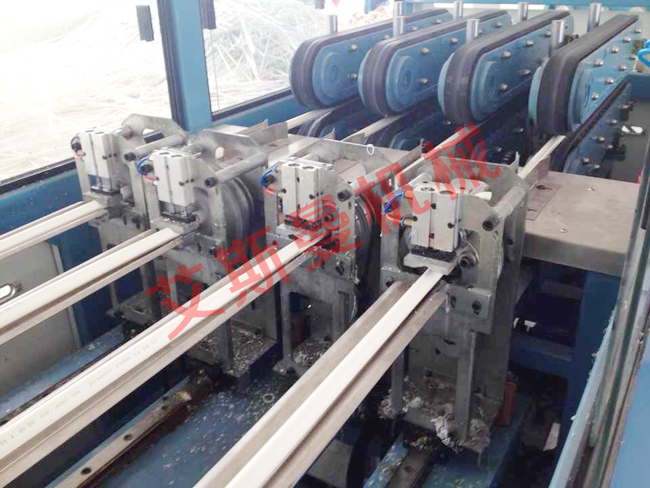

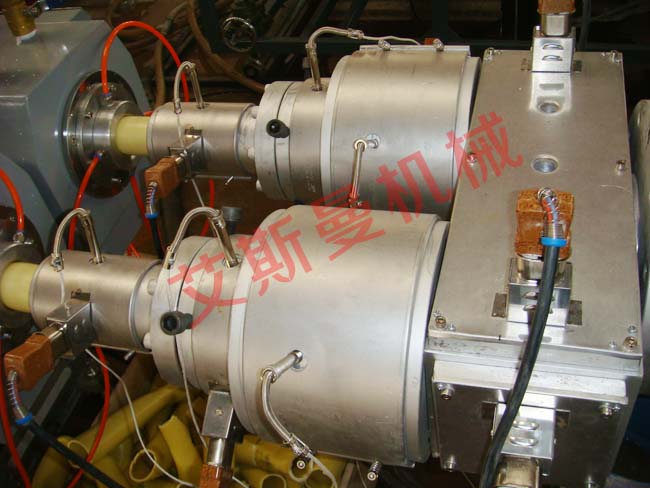

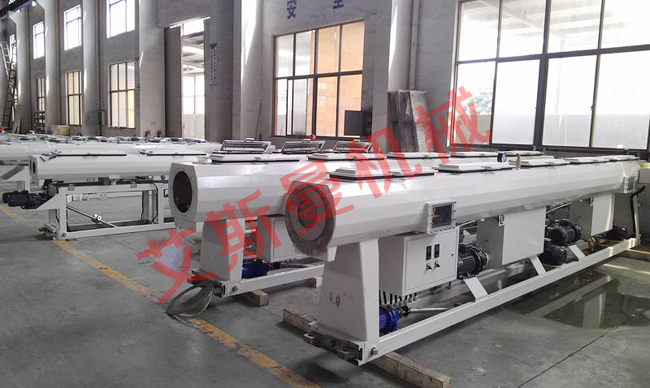

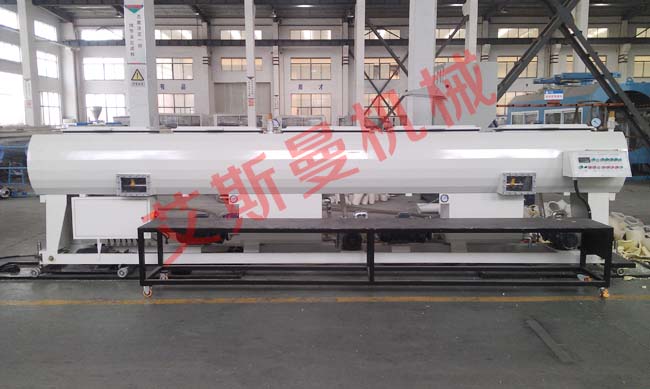

    PVC pipe mainly used in the area of agricultural water supply&discharge system, architectural water supply&discharge system, pavement of cable, etc. This machine consists of twin conical(parallel)screw extruder, vacuum forming tank,haul-off unit, cutting unit, material tumbling frame, etc. twin screw extruder and haul-off unit adopt imported A/C inverter, both vacuum pump and driving motor use the first-class brand

    Pipe size range:

    PVC  threading pipe production line: 16-40mm

    PVC drain pipe production  line: 50-200mm

    PVC water supply pipe production line: 20-800mm



    Main technical parameter:

    Pipe spec(mm)

    16-40 Dual

    20-63 Dual

    20-63

    50-160

    63-200

    160-315

    315-630

    560-800

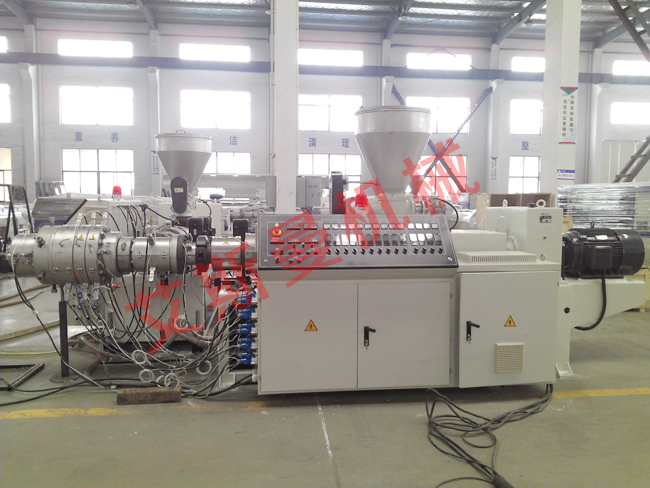

    Conical twin screw extruder

    SJZ51

    SJZ65

    SJZ51

    SJZ65

    SJZ65

    SJZ80

    SJZ92

    SJP130

    Main motor power(KW)

    18.5

    37

    18.5

    37

    37

    55

    110

    160

    Output(kg/h)

    120

    250

    120

    250

    250

    350

    800

    1100

    Production speed(m/min)

    10

    15

    15

    8

    3.5

    3

    1.2

    1.3
