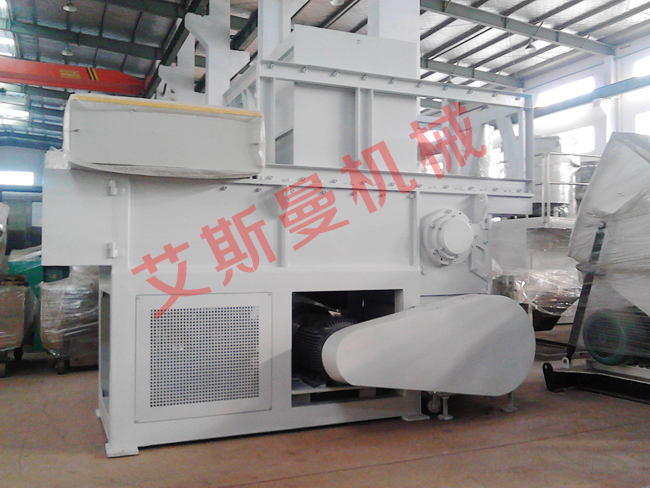

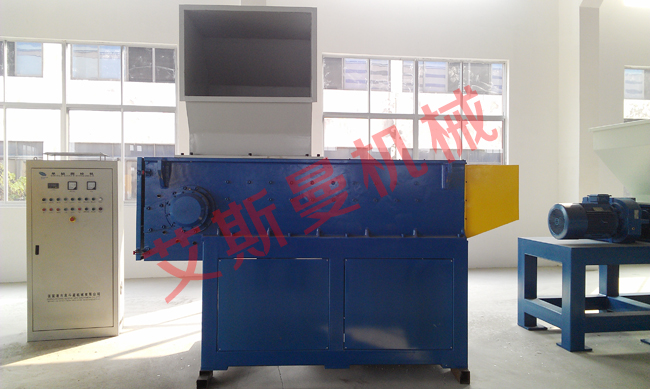

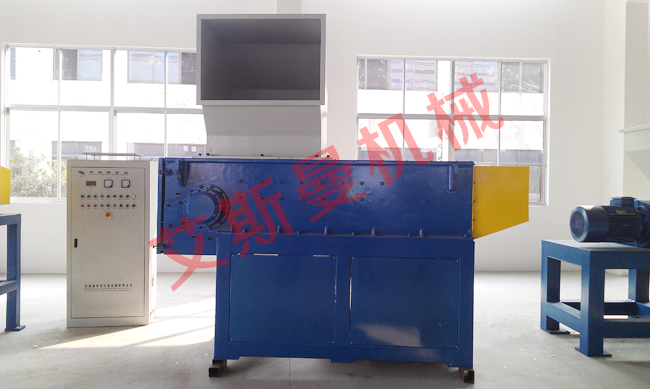

    Single shaft shredder


    Application

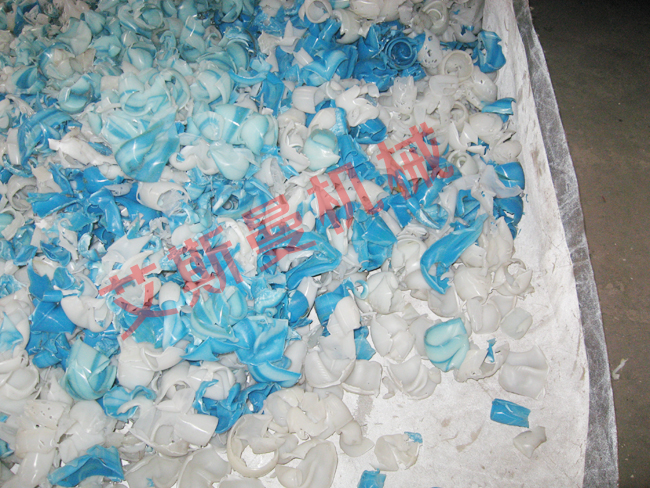

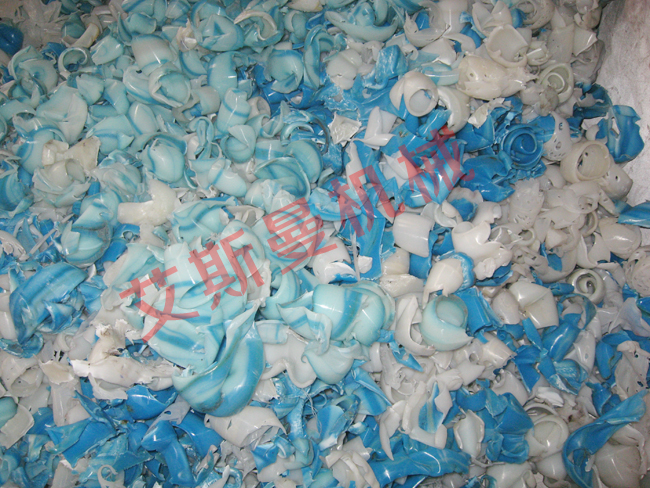

    -PE,PP materials large diameter thick wall pipe , PE head material ,PE plastic packing barrels of plastic trash can

    -electronic water - board-wood and so on

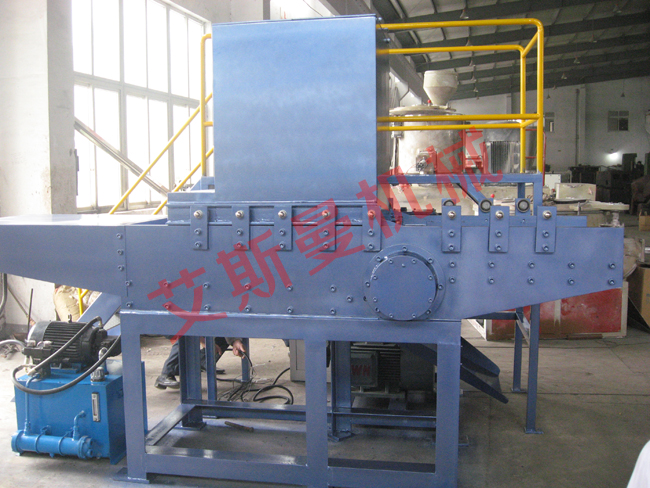

    1.hydraulic pushing ,independent power system firm structure, stable operation ,the large bundle of plastic bag can be torn, convenient feeding

    2.Spindle driven by gear box smooth operation ,low noise ,large torque

    3.PLC program control system can positive and negative downtime .the machine is more safety and reliable

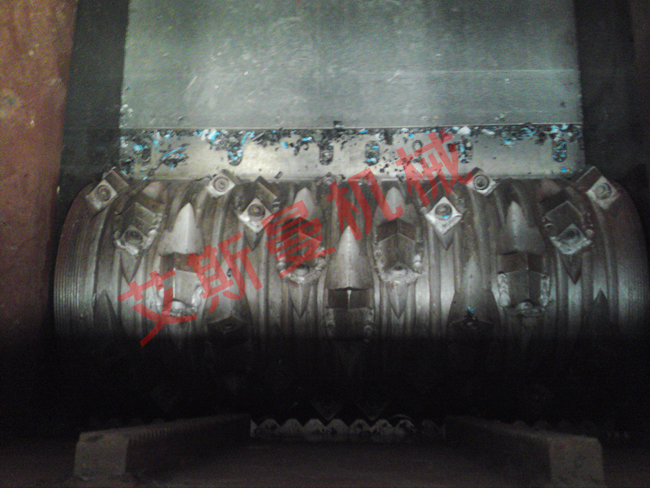

    4.Blade material: Cr12MoV(Japanese brand skd-11,American board D2);the knife used in a V type installations, blanking uniformly rotating knife in the work reduce energy consumption and noise .every moving knife has four cutting edges. It can continue to use after rotate 90; each fixed blade has two cutting edges and it can continue to use after 180 degree.rotor blade on the removable is facilitate cleaning ,maintenance

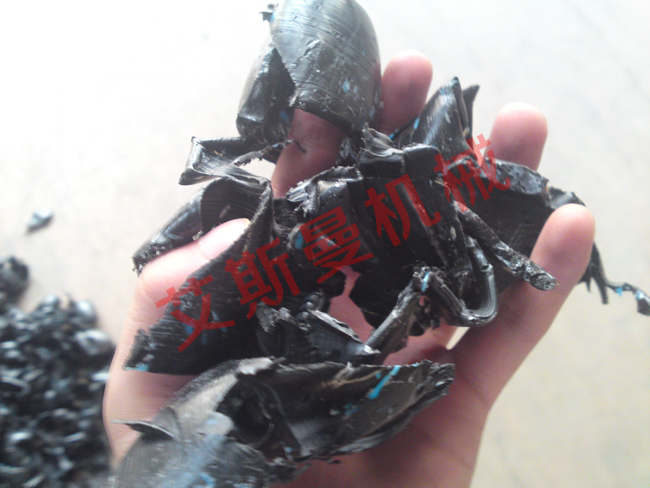

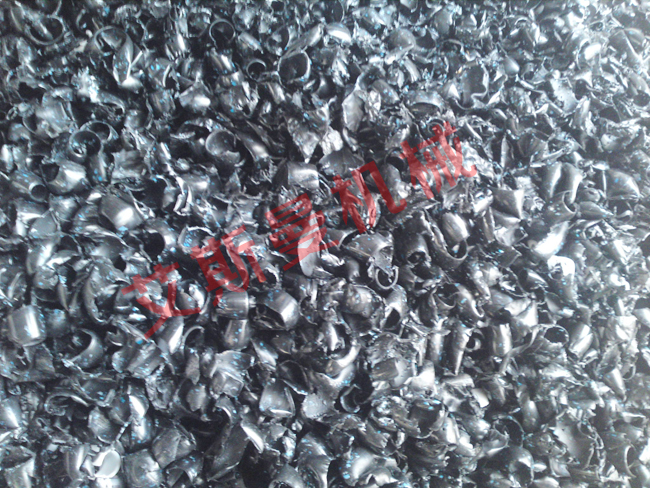

    V series shredder machine is widely used range of low speed high torque crushing equipment. after crushing the products can be used as raw material to sale or to  other products. The capacity of the shredder is about 300kg/h to 3000kg/h according to different material


    Specification

    Model

    DZ-2455

    DZ-3063

    DZ-3980

    DZ-48100

    DZ-57120

    Rotating blade diameter

    255mm

    255mm

    255mm

    300mm

    300mm

    Number of rotating blade

    24pcs

    30pcs

    39pcs

    48pcs

    57pcs

    Rotating blade shaft speed

    90rpm

    90rpm

    87rpm

    87rpm

    87rpm

    Number of fixed blade

    1pc

    1pc

    1pc

    2pc

    2pc

    Hydraulic Station Power

    4KW

    4KW

    5.5KW

    5.5KW

    7.5KW

    pressure

    6~12Mpa

    6~12Mpa

    6~12Mpa

    6~12Mpa

    6~12Mpa

    Capacity

    250~400㎏/h

    250~450㎏/h

    300~600㎏/h

    500~1000㎏/h

    600~1200kg/h

    Hopper diameter r

    550mm×650mm

    700mm×900mm

    870mm×1000mm

    1070m×1150mm

    1280mm×1300mm

    Motor power

    18.5KW

    22KW

    30KW

    45KW

    55KW

    weight

    3500㎏

    4500㎏

    6000㎏

    8000㎏

    9500kg

    Outer size

    3000L×1600W×2200H

    3300L×1800W×2400H

    3850L×2000W×2700H

    4000L×2200W×2800H

    4500L×2500W×2800H

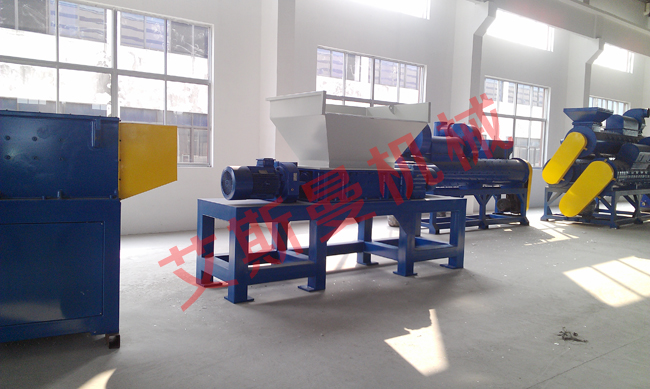

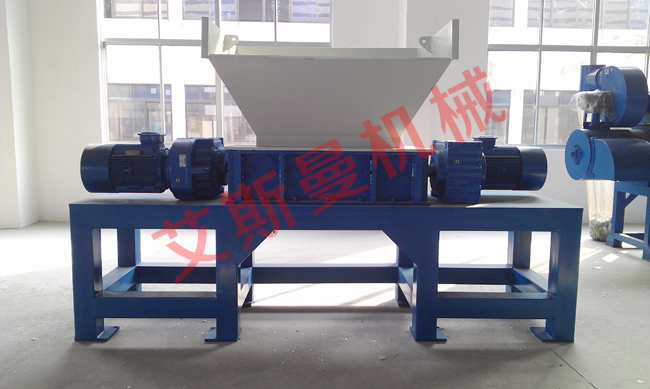

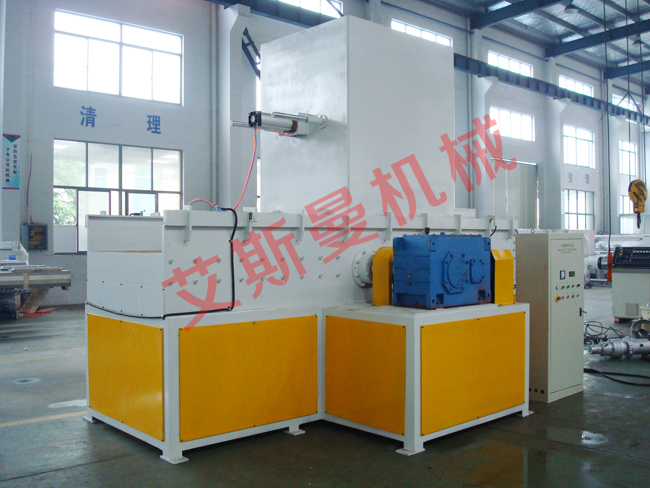

    Double shaft shredder

    Application

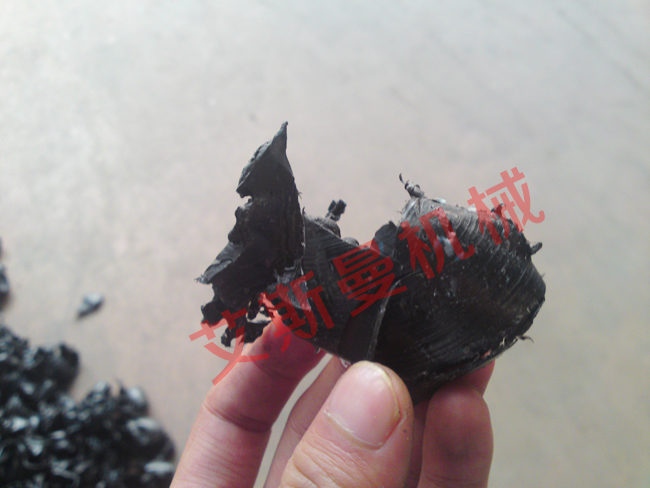

    Rubber tires, large roll film ,large bundle of agricultural film, greenhouse film, large bundle packing plastic film ,large bundle packing tons film, fiber


    Specification:

    Model

    SZ-600

    SZ-800

    SZ-1000

    SZ-1200

    SZ-1600

    Rotating blade diameter

    255mm

    255mm

    300mm

    300mm

    300mm

    Number of rotating blade

    60pcs

    78pcs

    96pcs

    114pcs

    150pcs

    Rotating blade shaft speed

    90rpm

    90rpm

    90rpm

    90rpm

    90rpm

    Number of fixed blade

    4pcs

    4pcs

    4pcs

    8pcs

    8pcs

    max.capacity

    650㎏/h

    900㎏/h

    1000㎏/h

    1200㎏/h

    1500㎏/h

    Hopper diameter

    700mm×800mm

    880mm×1100mm

    1070mm×1150mm

    1280mm×1300mm

    1650mm×2000mm

    Motor power

    18.5KW×2

    22KW×2

    30KW×2

    37KW×2

    45KW×2

    weight

    4000㎏

    5400㎏

    6200㎏

    8000㎏

    9500㎏
